Overall Dimensions: 105" long x 84" wide.
- 67-Page PDF Build Plan
- 42 DXF Files

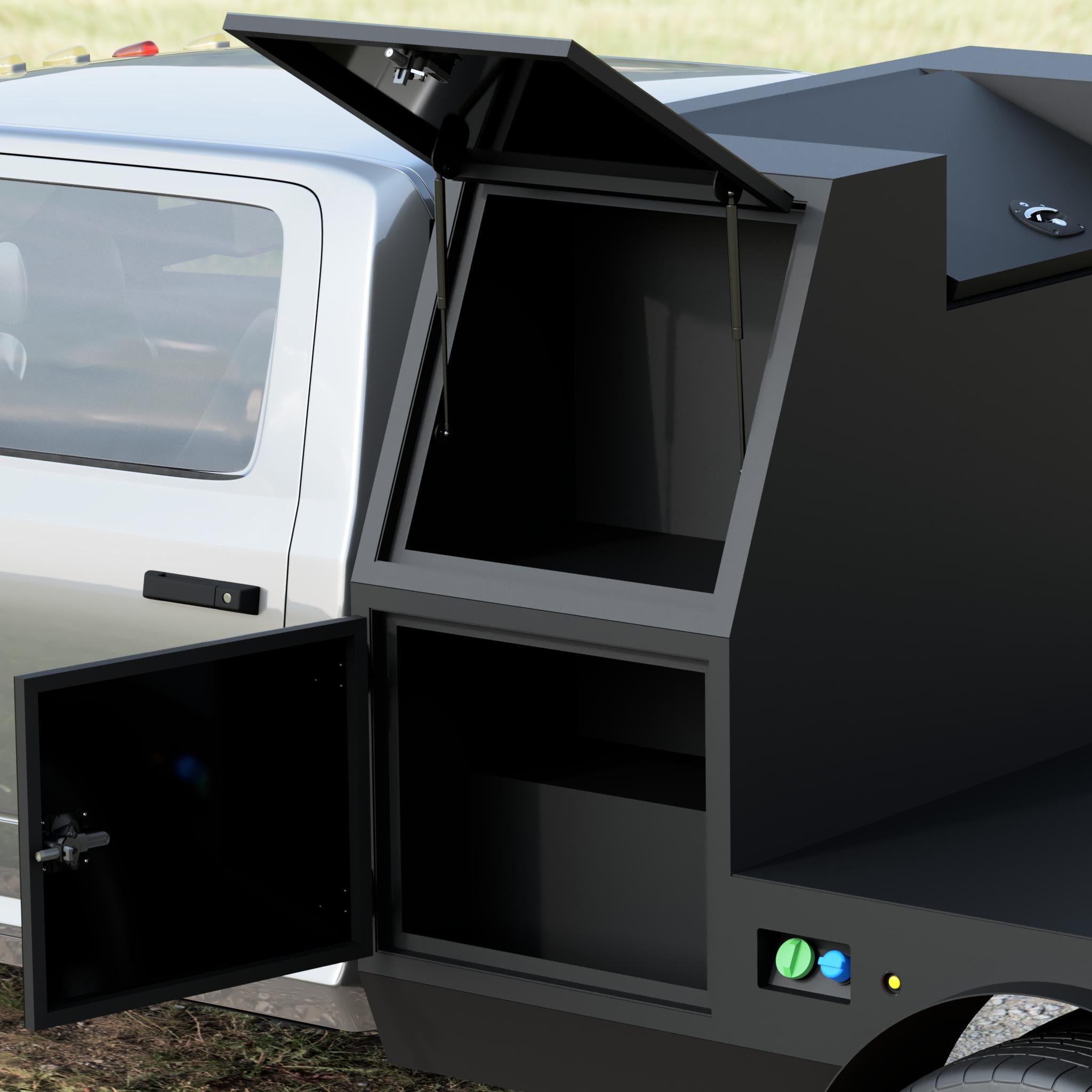

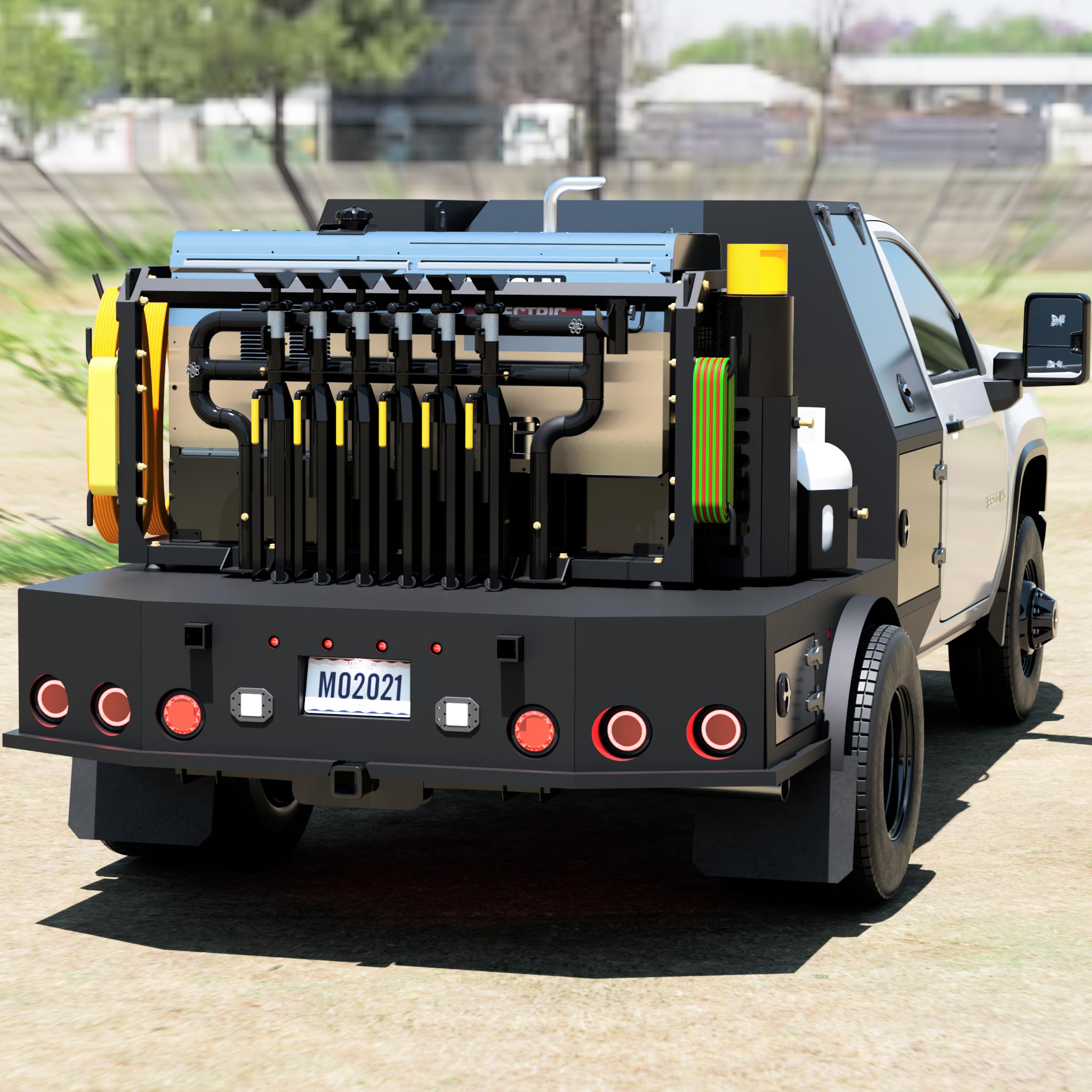

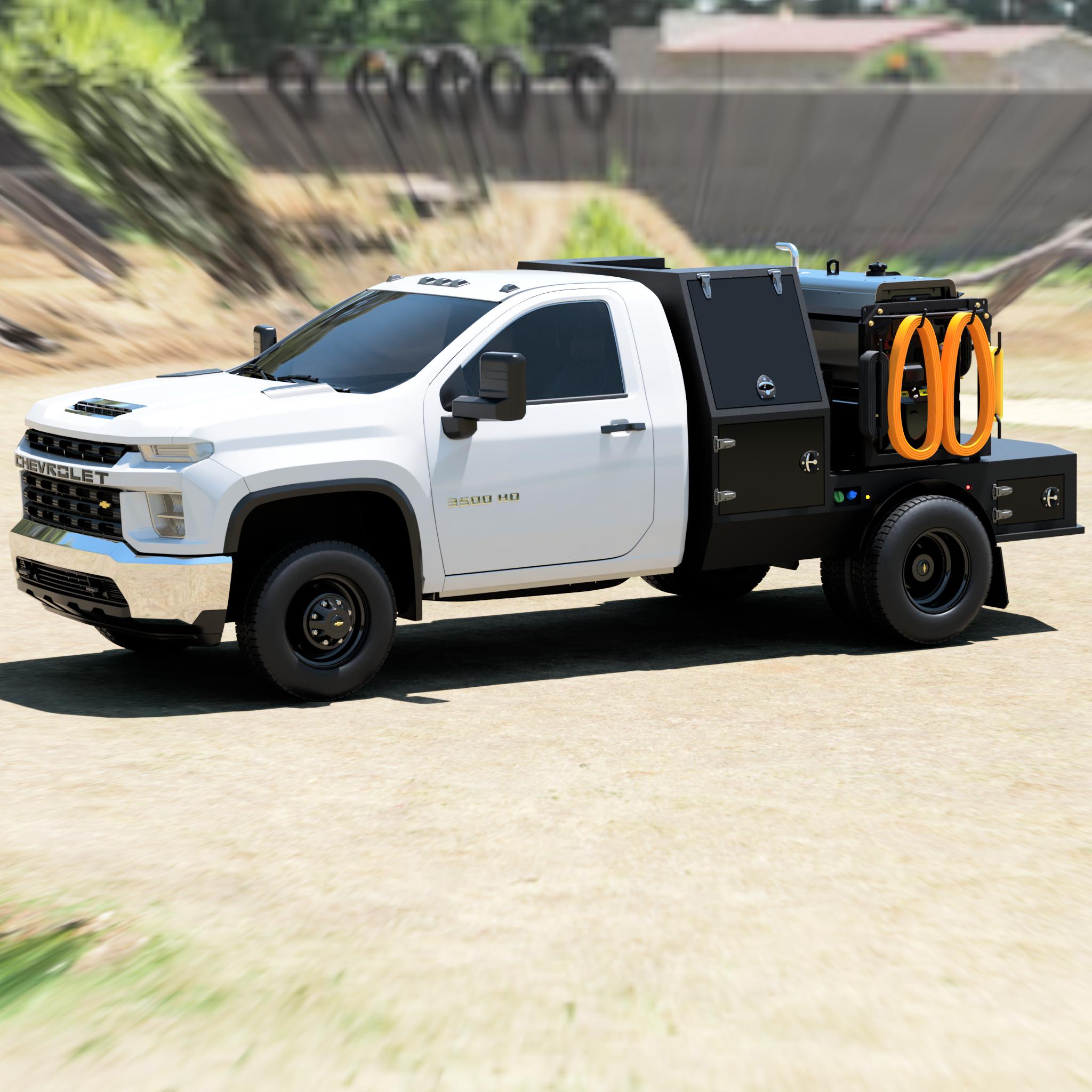

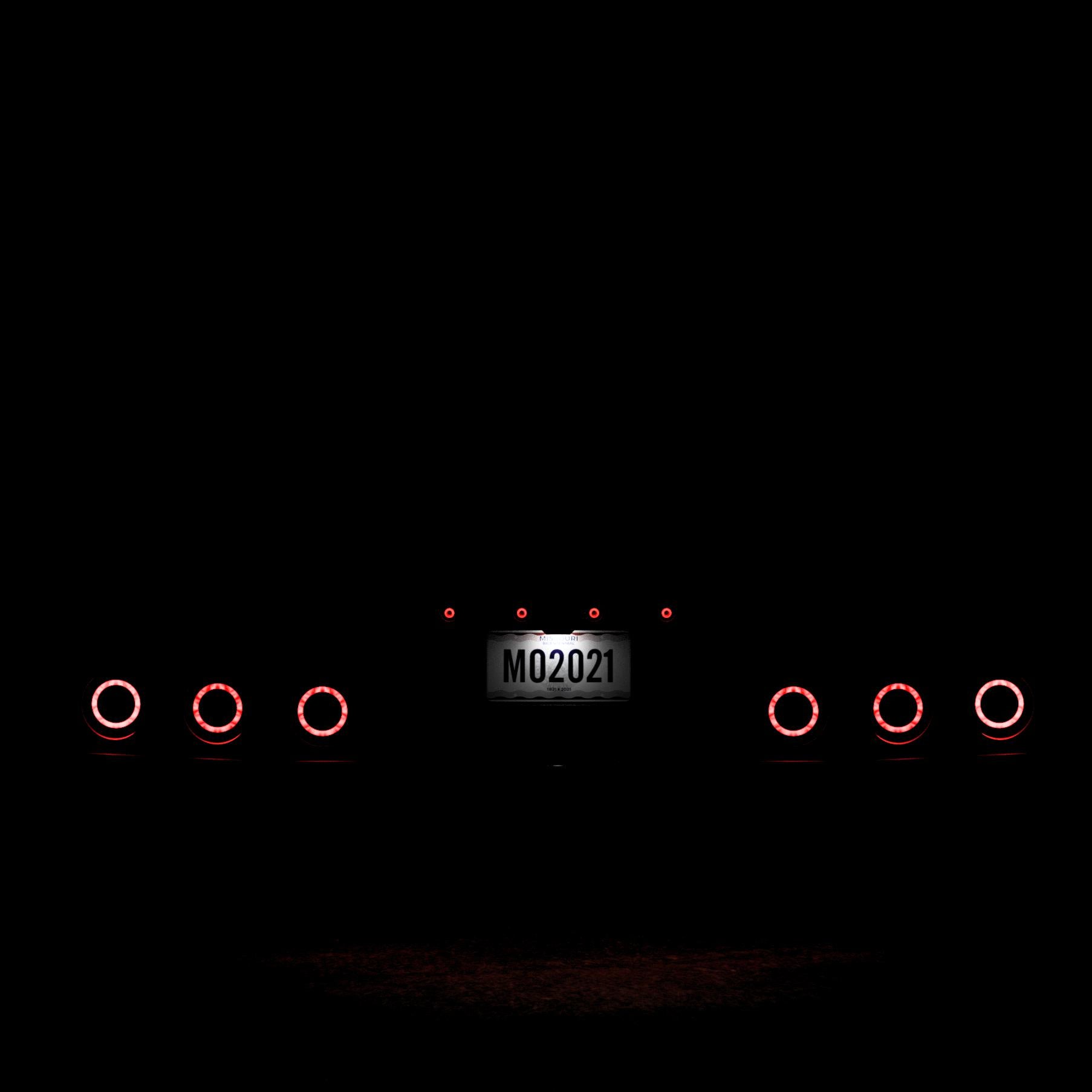

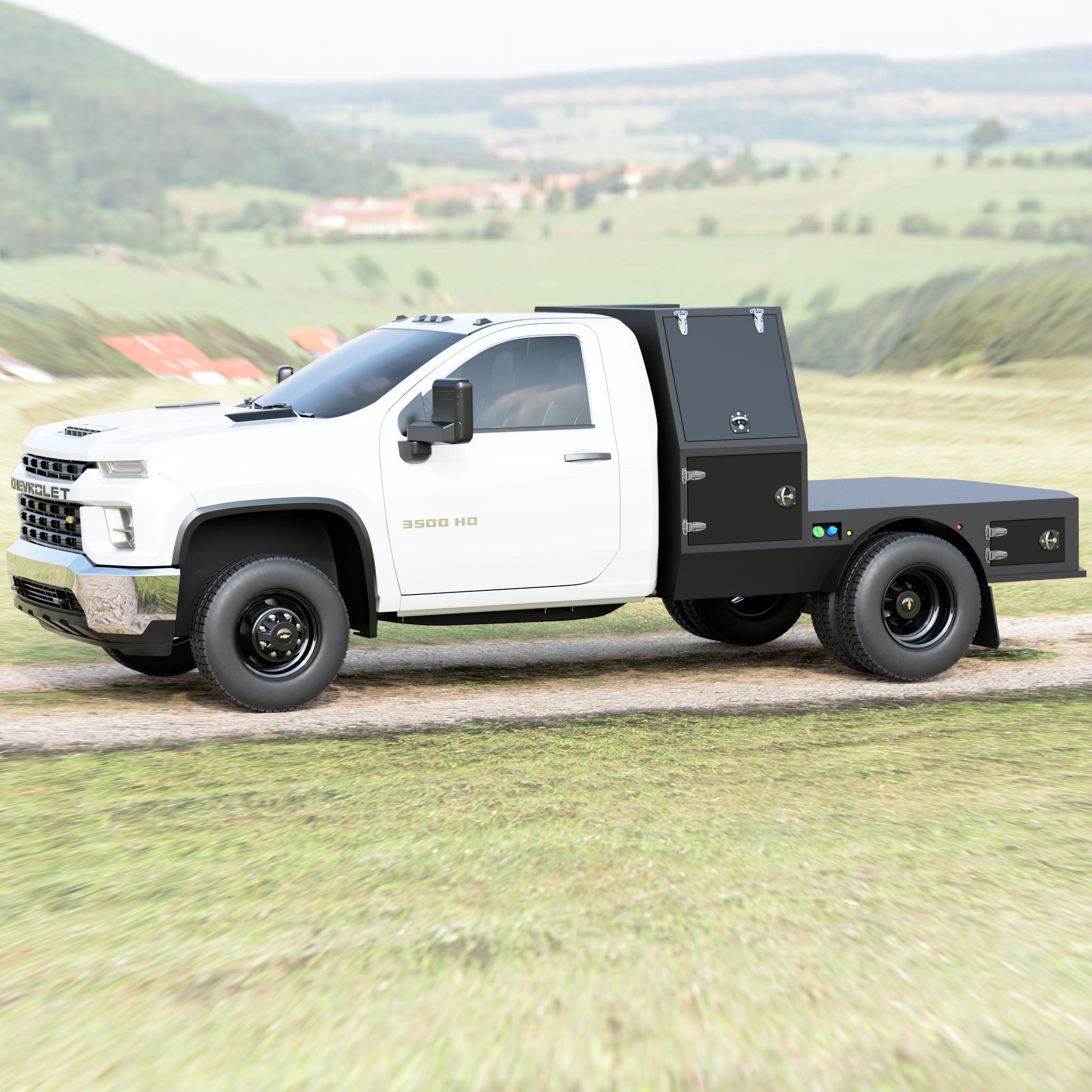

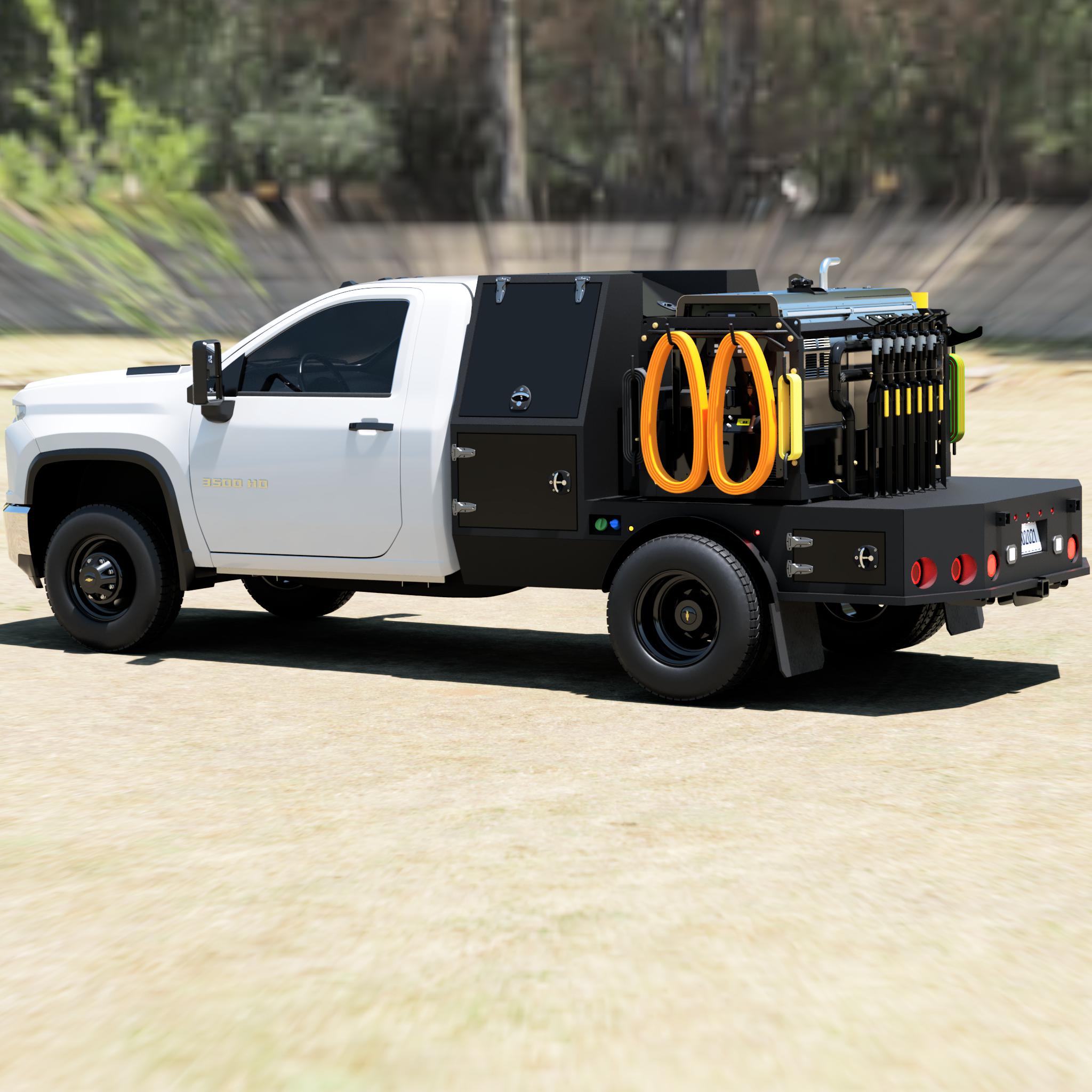

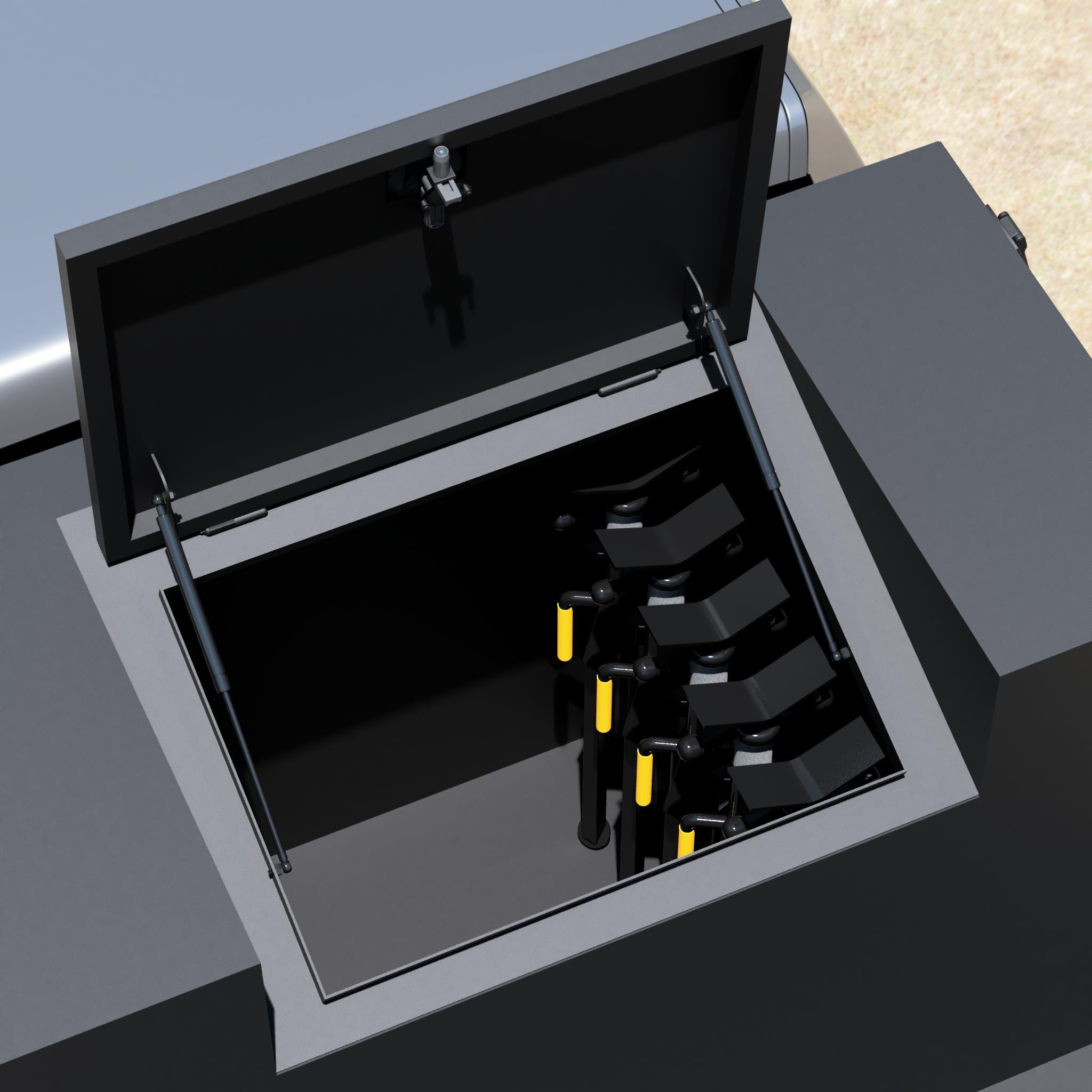

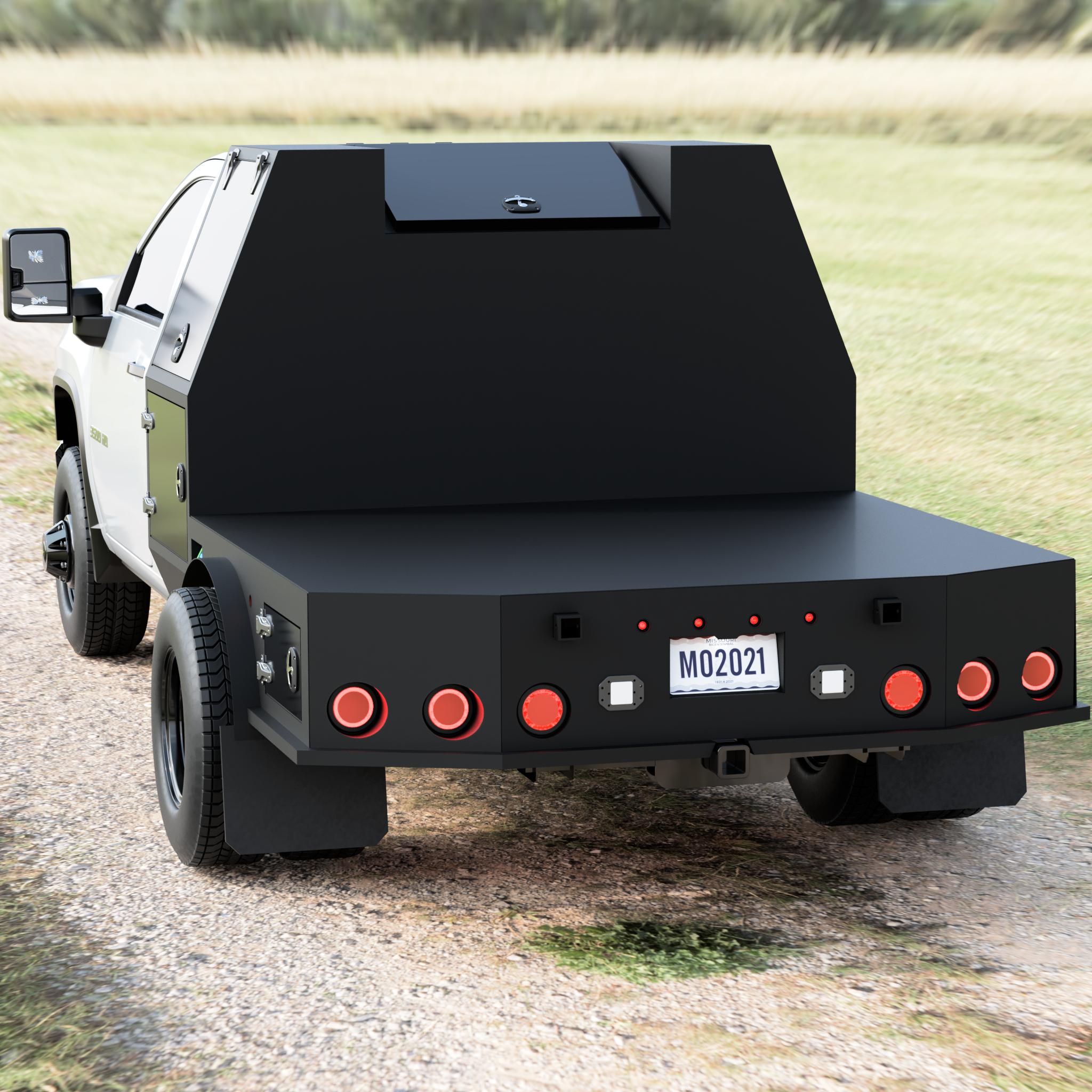

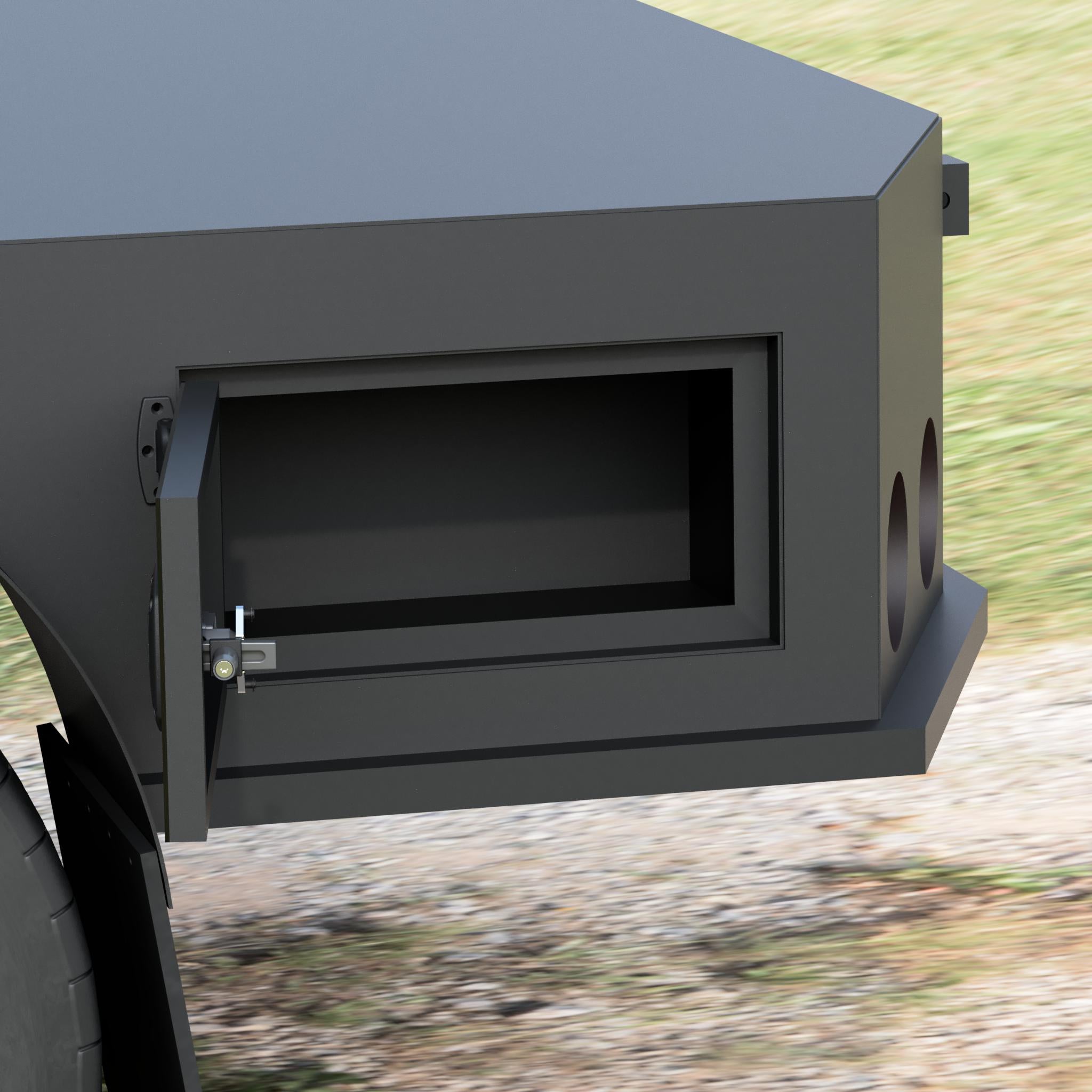

Build this bed for your 2020-2024 Chevy/GMC 3500 DRW LB. Designed from Canadian welding rigs with a large toolbox in front and a flat deck behind it. The front box features two outside boxes on each side. On top is a 30" wide, 28.5" tall, and 21.5" deep angled box that works great for shelving or drawers. On bottom is a 30" wide, 31.5" tall, 22" deep box and features a lower drop in section great for larger tools, and an upper section that can be used for shelving or drawers. Centered between them is a 36" wide by 33" tall (at the lowest point) box that can fit 5 Pipe stands deep and still has tons of room to store more. The back deck is 75" long and 84" wide making it a great platform to be used as a welding rig or a flatbed. Two side boxes that are 21" wide, 10.5" tall, and 10.5" deep sit at the rear and make great storage for straps or extra tools you couldn't fit in the front. Halo Glo lights and marker lights sit recessed into the back plate and will be sure to make you stand out at night. Insert your factory towing harness into the rear plate. Throw a vise or roll out wheel into the two hitch mounts on back to make a great workstation.
This bed mounts into the factory bed holes for easy installation and removal and uses the factory DEF filler neck.
**PURCHASE THIS BED AND GET A MODULAR SKID PLAN FOR 50% OFF. **
**WELDING SLOOP NOT INCLUDED. **
**THIS PURCHASE IS FOR A PDF BUILD PLAN DOWNLOAD NOT THE PHYSICAL PRODUCT SHOWN. **
License Type: Personal (What's This?)
